YOUR ONE-STOP SOURCE FOR CNC MACHINING SERVICES & EQUIPMENT IN TORONTO AND THE GTA
Hyper CNC Machining has significantly invested in the latest technologies and tooling systems. Along with many tooling operations, our precise machinery and software allow us to implement our services adeptly and efficiently. As your one-stop shop for CNC machining services and equipment in Toronto and the GTA, we assist designers, engineers, and hobbyists in designing, developing, and fabricating top-notch CNC precision parts. We also have access to waterjet machines, laser cutters, welders, manual mills, grinders, and drill presses.
Contact us today for more information.
OUR STATE-OF-THE-ART EQUIPMENT:
​At Hyper CNC Machining, we take pride in our advanced CNC machining equipment. Our cutting-edge machinery allows us to deliver high-precision components and parts with unmatched accuracy. We understand the importance of staying up to date with the latest technology, so we continually invest in our equipment to ensure that our clients receive the best possible service.
OUR EQUIPMENT
Let us introduce you to our equipment, which can enhance your production process. With a focus on precision and the latest industrial processes, these machines can provide the cutting-edge services you need.
RoboCut C600iC Wire EDM
The RoboCut C600iC Wire EDM is the latest innovation of FANUC, featuring a state-of-the-art 31i-WB control with iHMI User Interface, AWF3, and an energy and wire usage-friendly economy mode. It offers an outstanding capability of producing straight and precise parts due to its powerful automatic wire tension meter and servo motor adjustment. Furthermore, the AWF3 has been enhanced to accommodate thread thicknesses of up to 16 inches. With its reliable Japanese-made technology, this RTS machine can be ready to ship within 5 days with a guarantee.
Specifications:
-
Wire Size: .004” to .012”
-
Posi 41.3×32.3×16.1
-
Maximum Workpiece Size (submersible)
-
41.3×32.3×12.000″ (1050x820x305) in (mm)
-
Z axis 12.200
-
Cutting Accuracy: (± .00001”)
-
Positioning Accuracy: (± .0001”)
-
Rotary Glass Encoder: (.000002″)
-
Both options (submersible) and (non-submersible)
-
Larger pieces can be cut with the process of non-submersible
RoboCut C600iB-12 Wire EDM
The FANUC RoboCut C600iB-12 Wire EDM comes with a powerful new 31i-WB control, including the latest iHMI user interface and the enhanced AWF3 with the ability to thread thicknesses up to 12 inches. Not only does it provide energy and wire usage savings, but this machine can also accurately cut through virtually no casting material residue. The robust wire tension meter and servo motor combination guarantee a precision finished product. Built 100% in Japan, the RoboCut CiB-Series guarantees reliability, an assurance synonymous with the FANUC brand.
Specifications:
-
Wire Size: .004” to .012”
-
Posi 41.3×32.3×16.1
-
Maximum Workpiece Size (submersible)
-
41.3×32.3×12.000″ (1050x820x305) in (mm)
-
Z axis 12.200
-
​Cutting Accuracy: (± .00001”)
-
Positioning Accuracy: (± .0001”)
-
Rotary Glass Encoder: (.000002″)
-
Both options (submersible) and (non-submersible)
-
Larger pieces can be cut with the process of non-submersible

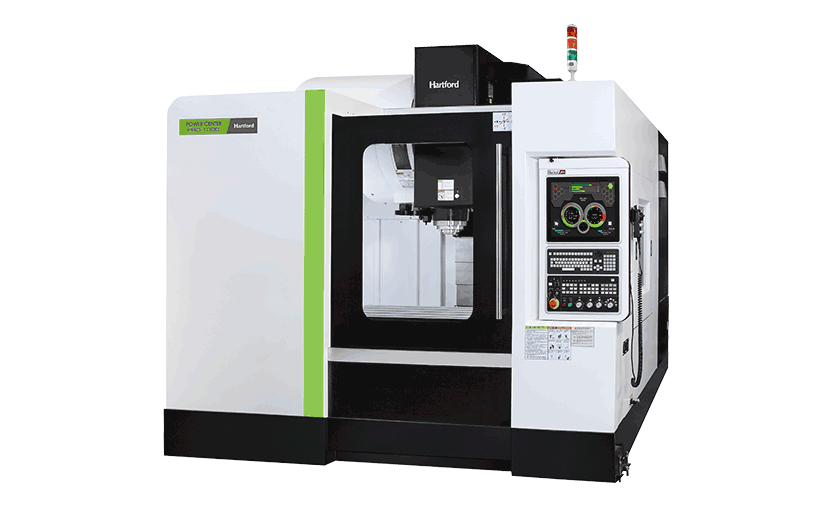

Hartford PRO 1000
The uniquely designed column boasts extra-wide and large sizing, providing increased rigidity, a substantial fastening surface on the base and maximized mat surface between the spindle head and the column. The exceedance in size allows for superior stability and a perfect structural ratio for outstanding stability. This unique column design offers great structural support, increased performance and reliability.
Specifications:
(44 x 24 Travel) CNC 3 Axis (5 Axis Capable) Vertical Milling Center
-
​Table Size: 1,150 x 600 MM
-
Table Load: 700 KGS
-
X Y Z Travels: 1,000 / 600 / 630 MM
-
Spindle Nose To Table: 100 ~ 730 MM
-
Spindle Taper: #40
-
Spindle Speeds: 6,000 8,000 10,000 12,000 RPM
-
Spindle Power: 7.5 11.0 15.0 KW
-
Rapid Traverse Rates: 20 M/MIN
-
Number of ATC Stations: 20 24
AGMA VMC-115
AGMA has designed its hardened box-way machines with exceptional rigidity and sturdiness for heavy-duty cutting. To reduce cutting-induced vibrations, each component of the machine structure is made from highly rigid Meehanite cast iron (FC30) with stress-relieving measures. Additionally, all slide-ways have been heat-treated and precision-ground to maintain accuracy. To minimize any potential vibrations, the Z-axis drive features double guide ways and counter-balancing. The agility and stability of the machine outperform most linear-way type machines in the market.
Specifications:
(44 x 24 Travel) CNC 3 Axis Vertical Milling Center
-
​Max. Table Load: 800 kgs
-
Spindle Taper: BT-50
-
Spindle Speed: Pulley 8,000RPM
-
Magazine Capacity: ARM TYPE 24 TOOLS
-
Rapid Traverse: 20/20/15m/min
-
Cutting feed rate: 1-10,000MM/MIN
-
​Spindle Motor: 11/15KW
-
X/Y/Z Motor: 3/3/3KW
-
Machine Height: 2,450MM
-
Floor Space: 3,000*2,720MM
-
Machine Weight: 7,000KGS
-
Controller: FANUC 0IMF
AGMA VMC-158
AGMA-hardened machines are designed to provide rigidity and strong cutting capabilities. Thanks to their exclusive, vibrational-dampening structure, these machines offer even greater agility than standard linear-way-type machines. AGMA also offers a specialized, dedicated support network for customers requiring special material cutting. Our commitment to customer satisfaction is always our top priority. Thus, AGMA provides the most suitable solution to meet the needs of our clients.
Specifications:
-
​(62 X 32 Travel) CNC 3 Axis Vertical Milling Center
-
Table: Table Size 66.93" x 32.09"
-
Maximum Table Load 4,400 Lbs
-
Travels: X-Axis Travel 59.05"
-
Y-Axis Travel 31.5"
-
Z-Axis Travel 27.56"
-
Spindle Nose to Table Top 7.87" - 35.43"
-
Spindle: Spindle Speeds Minimum - Maximum 40 - 4,000 RPM
-
​Spindle Taper 50 Taper
-
Main Motor (30 min. / continuous) 18 / 15 HP
-
Tool Changer: Tool Changer Positions (side mount) 24 ATC
-
Rapids: Rapid Traverse (X & Y / Z) 590 / 472 IPM
-
Cutting Feed Rate 393 IPM
-
Dimensions: Floor Space (L x W x H) 163" x 136" x 124"
-
Weight (approx.) 33,500 Lbs
TAKUMI V-18
This machine offers superior performance in metal component, die-&-mold machining, with linear motion consisting of ball-type ball-screws combined with 4-piece box-ways. To optimize lubrication, the system uses a high-grade oil injector, complete with copper pipes, for lubrication circulation. The inclined-plane design on the chassis and rear flushing system provides effective chip removal. With heat treatment, Meehanite casting iron is used for high-rigidity and high-precision mechanical structures to eliminate residual stress, ensuring accurate miniature movements and lasting accuracy.
Specifications:
-
(70 X 34 Travel) 3 AXIS CNC Vertical Milling Centre
-
X-Axis (mm): 1.8
-
Y-Axis (mm): 850
-
Z-Axis (mm): 750
-
Table working surface W x D (mm): 1.900 x 850
-
Load max. (uniform distribution) (kg): 2
-
Distance from spindle nose to table (mm): 200 - 950
-
T-Slots (DIN 650): 5 x 22mm x 150mm
-
​Spindle Taper: SK50 / BT50
-
Type: Riemen
-
Power S1/S6 (kW): 15 / 25
-
Torque S1/S6 (Nm): 95,5 / 159
-
Spindle Speed (rpm): 8
-
Rapid Traverse X/Y/Z-Axis (m/min): 16 / 16 / 14
-
Cutting Feed Rate X/Y/Z-Axis (mm/min): 5
WHY CHOOSE OUR CNC MACHINING SERVICES IN TORONTO?
-
Unrivalled expertise: Our team comprises experienced and skilled machinists passionate about delivering the best results. We have a deep understanding of CNC machining techniques, and our expertise shines through in every project we undertake.
​
-
Precision and accuracy: We understand that precision is crucial in CNC machining. Whether it's a small prototype or a large production run, we consistently deliver products with unparalleled accuracy.
-
Competitive pricing: Hyper CNC Machining offers cost-effective solutions without compromising on quality. We work closely with our clients to provide competitive quotes that meet their budget requirements.
-
Quick turnaround: We value your time and understand the importance of meeting deadlines. Our streamlined processes ensure fast turnaround times while maintaining the highest quality standards.
-
Custom solutions: No two projects are the same. We are dedicated to providing customized solutions that meet the unique requirements of your project. Our team works closely with you to ensure your vision becomes a reality.
-
Quality assurance: Hyper CNC Machining is committed to quality assurance and rigorous inspection processes. Our quality control measures guarantee that your components meet the highest industry standards.
-
Client-centric approach: We prioritize our clients' satisfaction and maintain open communication throughout the project. Your feedback and input are essential to achieving the best results.
​
Hyper CNC Machining is your go-to place for CNC machining services in Toronto. We've got top-notch machines, super-skilled experts, and a solid dedication to quality in every job. When you pick us, you get precision, top quality, and a team that loves making great stuff. Contact us today to discuss your CNC machining needs, and we'll help make your projects a reality.
SERVING TORONTO AND BEYOND
While our roots are in Toronto, we proudly serve customers across Canada and internationally. Our commitment to quality and precision knows no borders. We've completed projects for clients in various industries, showcasing our ability to adapt to diverse needs.
​
At Hyper CNC Machining, we're not just a machining service provider; we're a partner dedicated to helping you achieve your goals. Contact us today to discuss your project, and let's work together to bring your CNC machining ideas to life.
BRANDS WE WORK WITH
We're proud to partner with some of the leading brands in the market, such as:
Our CNC machining services are at the forefront of technological advancements, ensuring your components are crafted with the utmost precision and efficiency. Whether you require intricate prototypes or high-volume production, we have the expertise to meet your needs. Located in the bustling hub of Toronto, we are strategically positioned to serve local and international clients. At Hyper CNC Machining, we take pride in delivering the quality, reliability, and exceptional service that your project deserves.
